Desktop Reader – NEO 2

Desktop Reader – NEO 2 HF

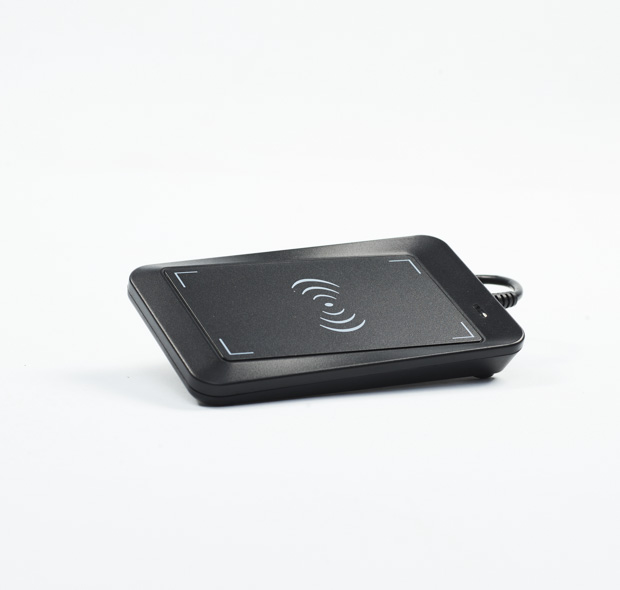

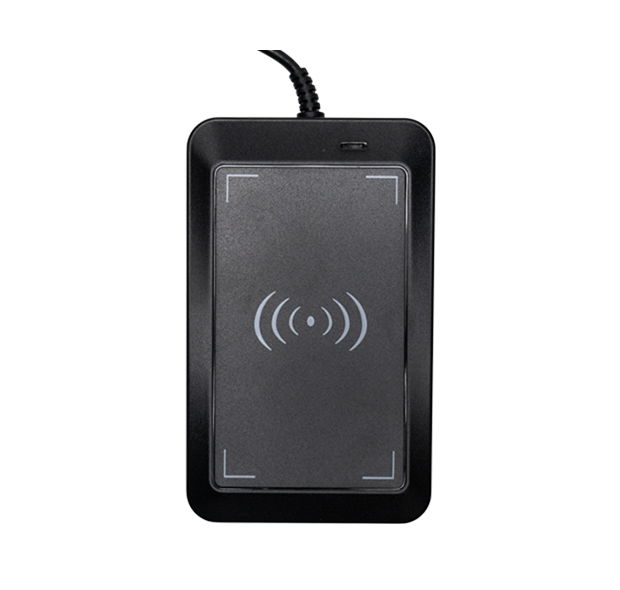

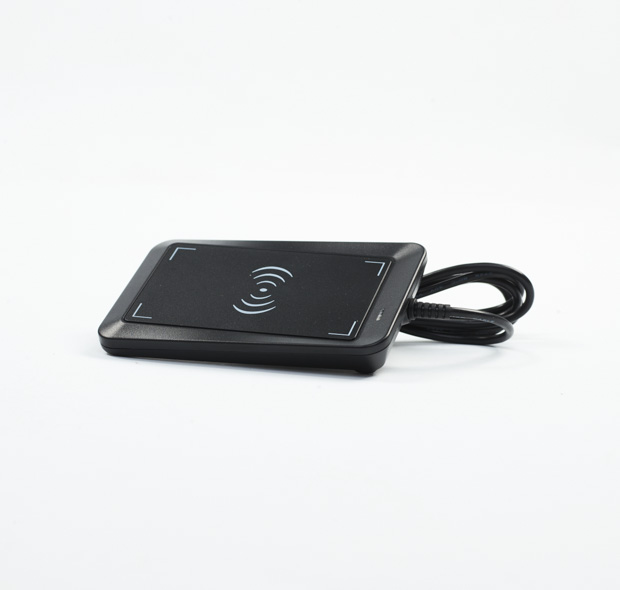

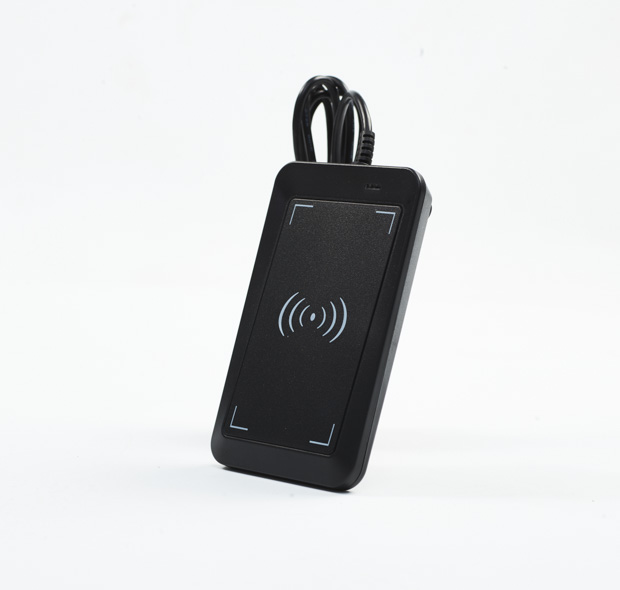

Il lettore RFID Desktop UHF | HF | NFC | LEGIC | LF – NEO 2 è un moderno e compatto lettore RFID plug-and-play con interfaccia USB 2.0.
Questo lettore RFID da scrivania è la soluzione perfetta per le più recenti applicazioni IoT aziendali ed è ideale per un’ampia gamma di settori, come retail, telecomunicazioni, banche o sanità.

Output dati configurabile con HID o VCP

Questo versatile lettore RFID supporta due modalità operative tramite USB: porta COM virtuale (VCP) o dispositivo di interfaccia umana (HID).

Un buzzer integrato e un LED di segnalazione confermano la corretta comunicazione con il tag.

Interfaccia PC/SC opzionale

È disponibile opzionalmente anche un’interfaccia PC/SC (= Personal Computer/Smart Card).

SDK incluso

Il lettore viene fornito con SDK (software di configurazione) per sistemi Windows.
Sono supportati i seguenti linguaggi di programmazione:

  • Protocollo

  • Libreria C++ per Visual Studio 2005 (VS2005)

Electrical Specifications

  • Power Supply: USB VCP + HID
  • Power Consumption: <200 mA
  • Operating Frequency:
    HF | NFC | LEGIC: 13.56 MHz
    LF: 125 kHz
    UHF: 868 MHz (ETSI), 902–928 MHz
  • Reading Distance:
    UHF: up to 15 cm
    HF / NFC: up to 5 cm
    LEGIC: up to 5 cm
    LF: up to 5 cm
  • Standard UID Output: ISO 14443A UID LSB
  • Antenna: Integrated
  • Status Indicators: 1 Bi-color LED, 1 Buzzer
  • Interface: USB 2.0 VCP / HID (plug-and-play), CH340E chip, PC/SC
  • Connections: 120 cm long cable with USB Type-A plug

Mechanical Specifications

  • Dimensions: 115 × 70 × 17 mm (without USB cable)
  • Weight: 90 g (including 120 cm USB cable)
  • Housing: ABS (black)

Environmental Conditions

  • Operating Temperature: -20 °C to +70 °C
  • Storage Temperature: -20 °C to +80 °C
  • Humidity: up to 95% non-condensing

Supported Standards / Tags – RFID HF | NFC | LEGIC: 13.56 MHz

  • ISO 14443 A and compatible
    Read/Write:
    MIFARE® Classic / 1K / 4K, MIFARE Ultralight® / C,
    MIFARE® DESFire® EV1 / 2,
    MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
    UID only: all other ISO14443A RFID tags
  • ISO 14443 B and compatible
    SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
  • ISO 15693 and compatible
    EM4135, EM4043, EM4x33, EM4x35,
    I-Code SLI / SLIX, M24LR16/64,
    TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
  • ISO 18000-3M3
    I-Code ILT-M
  • LEGIC RF Standard
    Full Read/Write:
    LEGIC Advant, LEGIC Prime
    Smart cards with Card in Card (CIC) technology – LEGIC Advant type AFS 4096-JP with LEGIC loadedSM4200: Segmentation
    SM4500: Segmentation and Initialization
  • Other Supported Standards
    ISO 14443 A + B
    ISO 15693
    LEGIC RF-Standard
    Inside Secure *
    Sony Felica **
    ST SR series

Supported Standards / Tags – RFID LF: 125 kHz

  • Read-only: EM4200 and compatible
  • FDX-B: Data reading
  • Read/Write: Hitag-1, Hitag-S

SDK Information

  • Supported Operating Systems: Windows XP, Vista, 7, 8, 8.1, 10
  • Supported Languages: Binary Command Protocol, C++ for VS2005
  • Demo Software: Available for Windows

Electrical Specifications

  • Power Supply: USB VCP + HID
  • Power Consumption: <200 mA
  • Operating Frequency:
    HF | NFC | LEGIC: 13.56 MHz
    LF: 125 kHz
    UHF: 868 MHz (ETSI), 902–928 MHz
  • Reading Distance:
    UHF: up to 15 cm
    HF / NFC: up to 5 cm
    LEGIC: up to 5 cm
    LF: up to 5 cm
  • Standard UID Output: ISO 14443A UID LSB
  • Antenna: Integrated
  • Status Indicators: 1 Bi-color LED, 1 Buzzer
  • Interface: USB 2.0 VCP / HID (plug-and-play), CH340E Chip, PC/SC
  • Connections: 120 cm long cable with USB Type-A plug

Mechanical Specifications

  • Dimensions: 115 × 70 × 17 mm (without USB cable)
  • Weight: 90 g (including 120 cm USB cable)
  • Housing: ABS (black)

Environmental Conditions

  • Operating Temperature: -20 °C to +70 °C
  • Storage Temperature: -20 °C to +80 °C
  • Humidity: up to 95% non-condensing

Supported Standards / Tags – RFID HF | NFC | LEGIC: 13.56 MHz

  • ISO 14443 A and compatible
    Read/Write:
    MIFARE® Classic / 1K / 4K, MIFARE Ultralight® / C,
    MIFARE® DESFire® EV1 / 2,
    MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
    UID read-only: all other ISO14443A RFID tags
  • ISO 14443 B and compatible
    SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
  • ISO 15693 and compatible
    EM4135, EM4043, EM4x33, EM4x35,
    I-Code SLI / SLIX, M24LR16/64,
    TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
  • ISO 18000-3M3
    I-Code ILT-M
  • LEGIC RF Standard
    Full read/write operation:
    LEGIC Advant, LEGIC Prime
    Smart cards with Card in Card (CIC) technology – LEGIC Advant type AFS 4096-JP with LEGIC loadedSM4200: Segmentation
    SM4500: Segmentation & Initialization
  • Other Supported Standards
    ISO 14443 A + B
    ISO 15693
    LEGIC RF-Standard
    Inside Secure *
    Sony Felica **
    ST SR series

Supported Standards / Tags – RFID LF: 125 kHz

  • Read-only: EM4200 and compatible
  • FDX-B: Data reading
  • Read/Write: Hitag-1, Hitag-S

SDK Information

  • Supported OS: Windows XP, Vista, 7, 8, 8.1, 10
  • Supported Languages: Binary command protocol, C++ for VS2005
  • Demo Software: Available for Windows

Electrical Specifications

  • Power Supply: USB VCP + HID
  • Power Consumption: <200 mA
  • Operating Frequency:
    HF | NFC | LEGIC: 13.56 MHz
    LF: 125 kHz
    UHF: 868 MHz (ETSI), 902–928 MHz
  • Reading Distance:
    UHF: up to 15 cm
    HF / NFC: up to 5 cm
    LEGIC: up to 5 cm
    LF: up to 5 cm
  • Standard UID Output: ISO 14443A UID LSB
  • Antenna: Integrated
  • Status Indicators: 1 Bi-color LED, 1 Buzzer
  • Interface: USB 2.0 VCP / HID (plug-and-play), CH340E chip, PC/SC
  • Connections: 120 cm long cable with USB Type-A plug

Mechanical Specifications

  • Dimensions: 115 × 70 × 17 mm (without USB cable)
  • Weight: 90 g (including 120 cm USB cable)
  • Housing: ABS (black)

Environmental Conditions

  • Operating Temperature: -20 °C to +70 °C
  • Storage Temperature: -20 °C to +80 °C
  • Humidity: up to 95% non-condensing

Supported Standards / Tags – RFID HF | NFC | LEGIC: 13.56 MHz

  • ISO 14443 A and compatible
    Read/Write:
    MIFARE® Classic / 1K / 4K, MIFARE Ultralight® / C,
    MIFARE® DESFire® EV1 / 2,
    MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
    UID only: all other ISO14443A RFID tags
  • ISO 14443 B and compatible
    SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
  • ISO 15693 and compatible
    EM4135, EM4043, EM4x33, EM4x35,
    I-Code SLI / SLIX, M24LR16/64,
    TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
  • ISO 18000-3M3
    I-Code ILT-M
  • LEGIC RF Standard
    Full Read/Write:
    LEGIC Advant, LEGIC Prime
    Smart cards with Card in Card (CIC) technology – LEGIC Advant type AFS 4096-JP with LEGIC loadedSM4200: Segmentation
    SM4500: Segmentation and Initialization
  • Other Supported Standards
    ISO 14443 A + B
    ISO 15693
    LEGIC RF-Standard
    Inside Secure *
    Sony Felica **
    ST SR series

Supported Standards / Tags – RFID LF: 125 kHz

  • Read-only: EM4200 and compatible
  • FDX-B: Data reading
  • Read/Write: Hitag-1, Hitag-S

SDK Information

  • Supported Operating Systems: Windows XP, Vista, 7, 8, 8.1, 10
  • Supported Languages: Binary Command Protocol, C++ for VS2005
  • Demo Software: Available for Windows

Electrical Specifications

  • Power Supply: USB VCP + HID
  • Power Consumption: <200 mA
  • Operating Frequency:
    HF | NFC | LEGIC: 13.56 MHz
    LF: 125 kHz
    UHF: 868 MHz (ETSI), 902–928 MHz
  • Reading Distance:
    UHF: up to 15 cm
    HF / NFC: up to 5 cm
    LEGIC: up to 5 cm
    LF: up to 5 cm
  • Standard UID Output: ISO 14443A UID LSB
  • Antenna: Integrated
  • Status Indicators: 1 Bi-color LED, 1 Buzzer
  • Interface: USB 2.0 VCP / HID (plug-and-play), CH340E Chip, PC/SC
  • Connections: 120 cm long cable with USB Type-A plug

Mechanical Specifications

  • Dimensions: 115 × 70 × 17 mm (without USB cable)
  • Weight: 90 g (including 120 cm USB cable)
  • Housing: ABS (black)

Environmental Conditions

  • Operating Temperature: -20 °C to +70 °C
  • Storage Temperature: -20 °C to +80 °C
  • Humidity: up to 95% non-condensing

Supported Standards / Tags – RFID HF | NFC | LEGIC: 13.56 MHz

  • ISO 14443 A and compatible
    Read/Write:
    MIFARE® Classic / 1K / 4K, MIFARE Ultralight® / C,
    MIFARE® DESFire® EV1 / 2,
    MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
    UID read-only: all other ISO14443A RFID tags
  • ISO 14443 B and compatible
    SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
  • ISO 15693 and compatible
    EM4135, EM4043, EM4x33, EM4x35,
    I-Code SLI / SLIX, M24LR16/64,
    TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
  • ISO 18000-3M3
    I-Code ILT-M
  • LEGIC RF Standard
    Full read/write operation:
    LEGIC Advant, LEGIC Prime
    Smart cards with Card in Card (CIC) technology – LEGIC Advant type AFS 4096-JP with LEGIC loadedSM4200: Segmentation
    SM4500: Segmentation & Initialization
  • Other Supported Standards
    ISO 14443 A + B
    ISO 15693
    LEGIC RF-Standard
    Inside Secure *
    Sony Felica **
    ST SR series

Supported Standards / Tags – RFID LF: 125 kHz

  • Read-only: EM4200 and compatible
  • FDX-B: Data reading
  • Read/Write: Hitag-1, Hitag-S

SDK Information

  • Supported OS: Windows XP, Vista, 7, 8, 8.1, 10
  • Supported Languages: Binary command protocol, C++ for VS2005
  • Demo Software: Available for Windows
