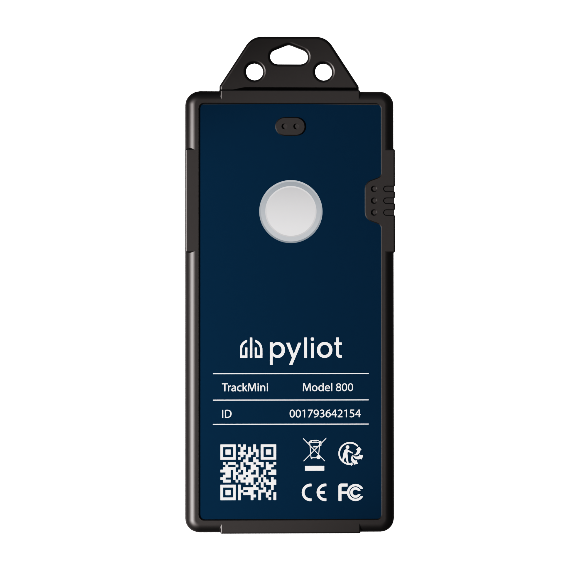

TrackMini Badge
Security for your work force
Thanks to the use of the GNSS satellite system, Wi-Fi access points, and cellular tower positioning, the Track Mini Badge ensures accurate location tracking, both indoors and outdoors.
The device features a button that can be activated to signal an alarm or configured for any other custom function.
The rechargeable battery provides approximately 35 days of autonomy, and charging is carried out via a convenient magnetic charger.

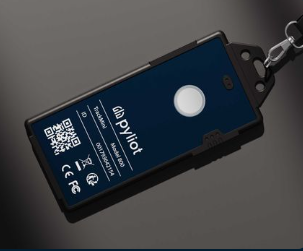

Its extremely compact housing can also accommodate a lanyard, allowing the Track Mini Badge to be worn just like a standard company badge.
Location
- GPS, WiFi access point scanning, cell tower-based positioning
Integrated Sensors
- Temperature, humidity, 3-axis acceleration
- Communication via LTE-M / NB-IoT network
Charging
- Fully rechargeable in under 2 hours
User Interface
- SOS button and status LED
Compact Form Factor
- Dimensions: 97 x 45 x 9 mm
Lightweight
- Weight: 45 g
Management Platform
- Dashboards and alerts available via pyliot app
Connectivity
- LTE-M/NB-IoT Modem: Certified LTE bands: B1–B5, B8, B12–B14, B17–B20, B25–B26, B28 and B66
- Integrated SIM: Embedded SIM (MFF2 format); customer-supplied option available (MOQs apply)
Location
- Application: Indoor / Outdoor
- GNSS: GPS, QZSS
- WiFi Location Scanning: Location based on available WiFi APs; works as fallback for indoor use
- Cell Tower Location: Triangulation via nearby cellular towers; fallback option
Sensors
- Temperature: ± 0.2 °C accuracy, -40 °C to 125 °C operating range
- Humidity: ± 1.8 % RH accuracy, 0 to 100 % RH operating range
- Air Pressure: ± 4 mbar accuracy
- Lux: Rejects >99% (typical) of IR over ±85° angle of incidence
- 3-Axis Accelerometer: Motion detection and high-G-force events
- External: Supports wireless BLE temperature sensors
Battery
- Rechargeable Battery: 3.7 V, 1100 mAh (more options to be released)
- Recharging: Magnetic Pogo Pin port; 20-way charging station available
- Life Estimate: Up to 4 years (24h publish interval); depends on logging/publish intervals, temperature, placement, update frequency, signal strength, sensor and peripheral usage, and accelerometer settings
Engineering
- Model: BADGE

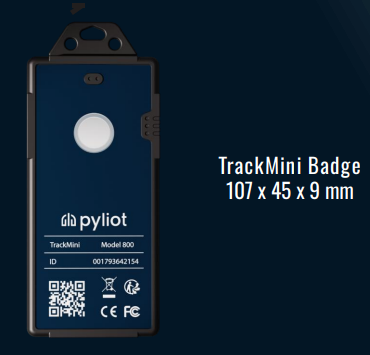

- Dimensions: 107 x 45 x 9 mm
- Weight: 45 g
- Housing: Anthracite ABS
- Rating: IP67
- Mounting: Wearable with lanyard or pocketable
- Operating Temp.: -20 °C to 60 °C
- Interaction Button: Customisable for provisioning, manual transmissions, emergency and more
- Front Panel LED: Indicates device connectivity and operation status
- Internal Memory: 1 MB flash memory to store logging data
Customisation
- Front Panel Sticker: Custom design available (MOQs apply)
- Housing Colour: Custom colour options available (MOQs apply)
Data
- IoT Platform: pyliot App (hosted in Germany)
- Integration: Third-party integration via API available
Operating Modes
- Motion-Based Logging: Begins logging/publishing when motion is detected
- Timer-Based Logging: Sends updates at scheduled intervals
- Shutdown Mode: Device sleeps when stationary to conserve battery; reactivates on movement
- Offline Logging: Stores data when offline, uploads when connection is restored
- Auto-Flight Mode: Disables connectivity during flight
- Usage Duration Monitoring: Tracks usage time based on motion
- Impact Detection: Detects high-impact events; notifies if threshold is exceeded
Device Handling
- Configuration: Logging/publish intervals, movement, accelerometer, button mode, and power-saving settings are configurable
- Update: Firmware and configuration updates over-the-air (OTA)
- Configuration Tool: pyliot provisioning layer or custom tool
Compliance
- Regulatory: CE, FCC, RoHS, UN38.3
