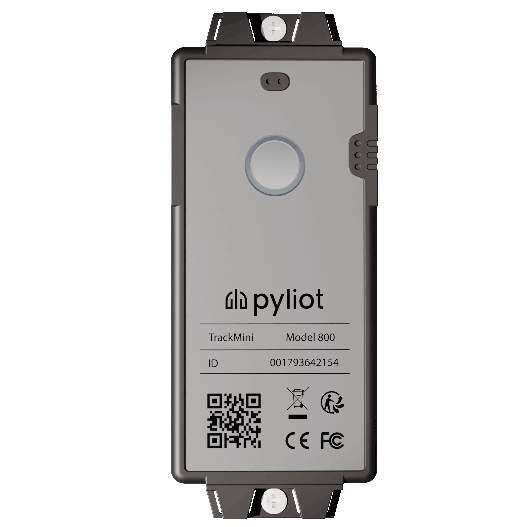

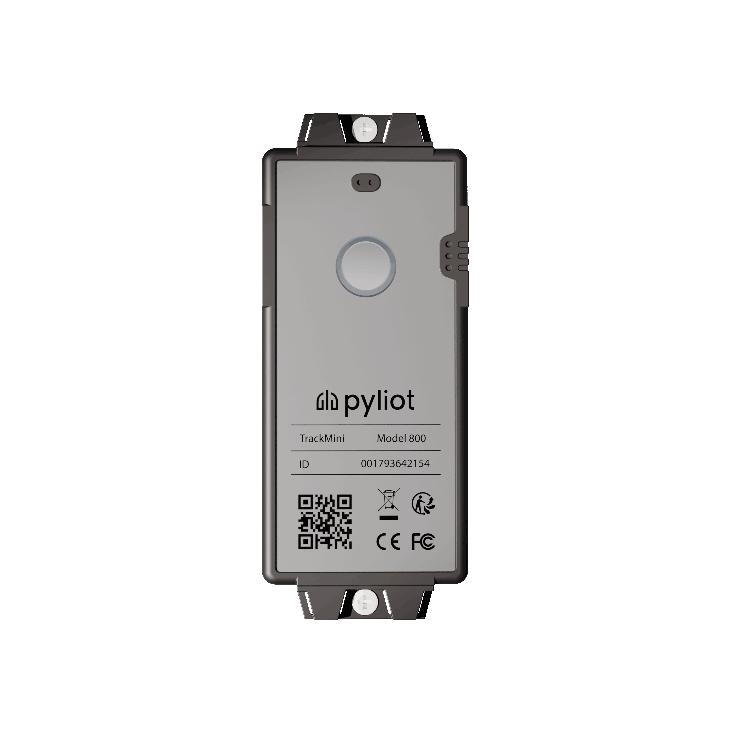

TRACKMINI INDUSTRIAL

Compact and stylish multisensor IoT Device

A compact and stylish IoT device that provides accurate positioning both outdoors and indoors by combining data from GNSS, Wi-Fi access point scanning, and cell tower triangulation.

It integrates sensors for temperature, humidity, pressure, light, and 3-axis acceleration, and can interface via BLE with optional external temperature sensors.
Data transmission can be carried out via both LTE cellular networks and Narrowband IoT (NB-IoT).

The rechargeable battery uses a dedicated magnetic charger and offers a lifespan of up to 4 years, depending on usage frequency.

Its industrial-grade housing is extremely compact and features IP67 protection, making it ideal for demanding environments.

Location tracking via GPS, WiFi AP scanning, and cellular network positioning

Integrated sensors: temperature, humidity, air pressure, light, 3-axis acceleration, plus support for optional external BLE temperature sensors

Designed for LTE-M / NB-IoT connectivity

Rechargeable battery – fully recharges in under 2 hours

Configurable button and LED indicator

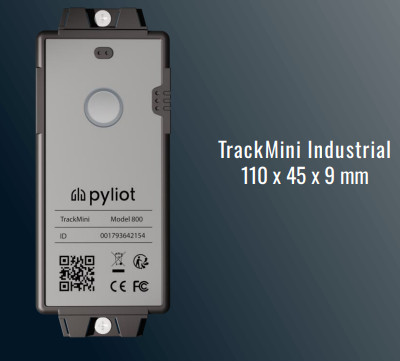

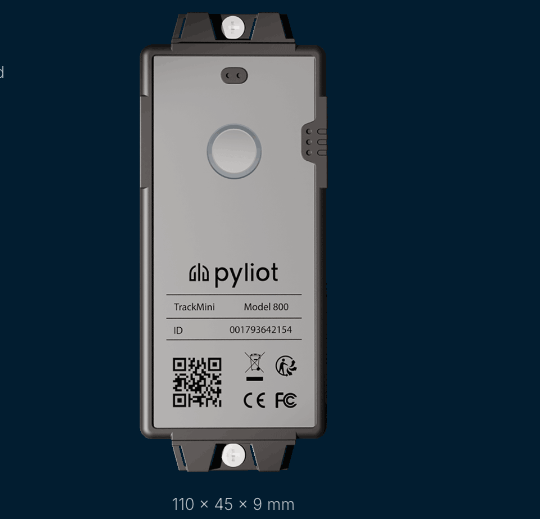

Compact form factor: 110 x 45 x 9 mm

Integrated IoT platform for data analysis and management

Connectivity

  • LTE-M/NB-IoT Modem: Certified LTE bands: B1–B5, B8, B12–B14, B17–B20, B25–B26, B28 and B66
  • Integrated SIM: Embedded SIM (MFF2 format). Customer-supplied option available (MOQs apply)

Location

  • Application: Indoor / Outdoor
  • GNSS: GPS, QZSS
  • WiFi Location Scanning: Positioning based on available WiFi access points; may also serve as fallback for indoor applications
  • Cell Tower Location: Positioning via triangulation of nearby cellular towers; may serve as fallback option

Sensors

  • Temperature: ± 0.2 °C accuracy, operating range -40 °C to 125 °C
  • Humidity: ± 1.8 % RH accuracy, 0 to 100 % RH operating range
  • Air Pressure: ± 4 mbar accuracy
  • Lux: Filters >99% (typical) of IR light with ±85° angle of incidence
  • 3-Axis Accelerometer: Detects motion and high-G-force events
  • External: Supports wireless BLE temperature sensors

Battery

  • Rechargeable Battery: 3.7 V – 1100 mAh (more options to be released)
  • Recharging: Magnetic Pogo Pin charging port. 20-slot charging station available
  • Life Estimate: Up to 4 years with 24h publish interval. Battery life also depends on temperature, device placement, location update frequency, signal strength, sensor usage, peripheral activity, and accelerometer settings

Engineering

  • Model: INDUSTRIAL
  • Dimensions: 110 x 45 x 9 mm
  • Weight: 46 g
  • Housing: Anthracite ABS
  • Rating: IP67
  • Mounting: Screws, bolts, zip ties, rivets, glue or double-sided tape
  • Operating Temperature: -20 °C to +60 °C
  • Interaction Button: Customisable for provisioning, manual transmissions, emergency, and other functions
  • Front Panel LED: Indicates device connectivity and operating status
  • Internal Memory: 1 MB flash memory for data logging

Customisation

  • Front Panel Sticker: Custom design available (MOQs apply)
  • Housing Colour: Custom colours available (MOQs apply)

Data

IoT Platform: pyliot App (hosted in Germany)
Integration: Third-party integration via available API

Operating Modes

  • Motion-Based Logging: Starts logging and publishing data when movement is detected
  • Timer-Based Logging: Sends data updates at predefined time intervals
  • Shutdown Mode: Switches to sleep mode when stationary to conserve battery and reduce data usage
  • Offline Logging: Stores data when offline and uploads automatically once reconnected
  • Auto-Flight Mode: Automatically disables connectivity when flight mode is detected
  • Usage Duration Monitoring: Tracks active use time based on movement detection
  • Impact Detection: Identifies high-impact events and notifies when a user-defined threshold is exceeded

Device Handling

  • Configuration: Logging interval, publish interval, movement settings, accelerometer sensitivity, button function, and power-saving settings can be fully customised
  • Update: Firmware and configuration updates available over-the-air (OTA)
  • Configuration Tool: pyliot provisioning layer or custom tool

Compliance

  • Regulatory: CE, FCC, RoHS, UN38.3

Location tracking via GPS, WiFi AP scanning, and cellular network positioning

Integrated sensors: temperature, humidity, air pressure, light, 3-axis acceleration, plus support for optional external BLE temperature sensors

Designed for LTE-M / NB-IoT connectivity

Rechargeable battery – fully recharges in under 2 hours

Configurable button and LED indicator

Compact form factor: 110 x 45 x 9 mm

Integrated IoT platform for data analysis and management

Connectivity

  • LTE-M/NB-IoT Modem: Certified LTE bands: B1–B5, B8, B12–B14, B17–B20, B25–B26, B28 and B66
  • Integrated SIM: Embedded SIM (MFF2 format). Customer-supplied option available (MOQs apply)

Location

  • Application: Indoor / Outdoor
  • GNSS: GPS, QZSS
  • WiFi Location Scanning: Positioning based on available WiFi access points; may also serve as fallback for indoor applications
  • Cell Tower Location: Positioning via triangulation of nearby cellular towers; may serve as fallback option

Sensors

  • Temperature: ± 0.2 °C accuracy, operating range -40 °C to 125 °C
  • Humidity: ± 1.8 % RH accuracy, 0 to 100 % RH operating range
  • Air Pressure: ± 4 mbar accuracy
  • Lux: Filters >99% (typical) of IR light with ±85° angle of incidence
  • 3-Axis Accelerometer: Detects motion and high-G-force events
  • External: Supports wireless BLE temperature sensors

Battery

  • Rechargeable Battery: 3.7 V – 1100 mAh (more options to be released)
  • Recharging: Magnetic Pogo Pin charging port. 20-slot charging station available
  • Life Estimate: Up to 4 years with 24h publish interval. Battery life also depends on temperature, device placement, location update frequency, signal strength, sensor usage, peripheral activity, and accelerometer settings

Engineering

  • Model: INDUSTRIAL
  • Dimensions: 110 x 45 x 9 mm
  • Weight: 46 g
  • Housing: Anthracite ABS
  • Rating: IP67
  • Mounting: Screws, bolts, zip ties, rivets, glue or double-sided tape
  • Operating Temperature: -20 °C to +60 °C
  • Interaction Button: Customisable for provisioning, manual transmissions, emergency, and other functions
  • Front Panel LED: Indicates device connectivity and operating status
  • Internal Memory: 1 MB flash memory for data logging

Customisation

  • Front Panel Sticker: Custom design available (MOQs apply)
  • Housing Colour: Custom colours available (MOQs apply)

Data

IoT Platform: pyliot App (hosted in Germany)
Integration: Third-party integration via available API

Operating Modes

  • Motion-Based Logging: Starts logging and publishing data when movement is detected
  • Timer-Based Logging: Sends data updates at predefined time intervals
  • Shutdown Mode: Switches to sleep mode when stationary to conserve battery and reduce data usage
  • Offline Logging: Stores data when offline and uploads automatically once reconnected
  • Auto-Flight Mode: Automatically disables connectivity when flight mode is detected
  • Usage Duration Monitoring: Tracks active use time based on movement detection
  • Impact Detection: Identifies high-impact events and notifies when a user-defined threshold is exceeded

Device Handling

  • Configuration: Logging interval, publish interval, movement settings, accelerometer sensitivity, button function, and power-saving settings can be fully customised
  • Update: Firmware and configuration updates available over-the-air (OTA)
  • Configuration Tool: pyliot provisioning layer or custom tool

Compliance

  • Regulatory: CE, FCC, RoHS, UN38.3
