IQBOX M600 EMBEDDED MODULE

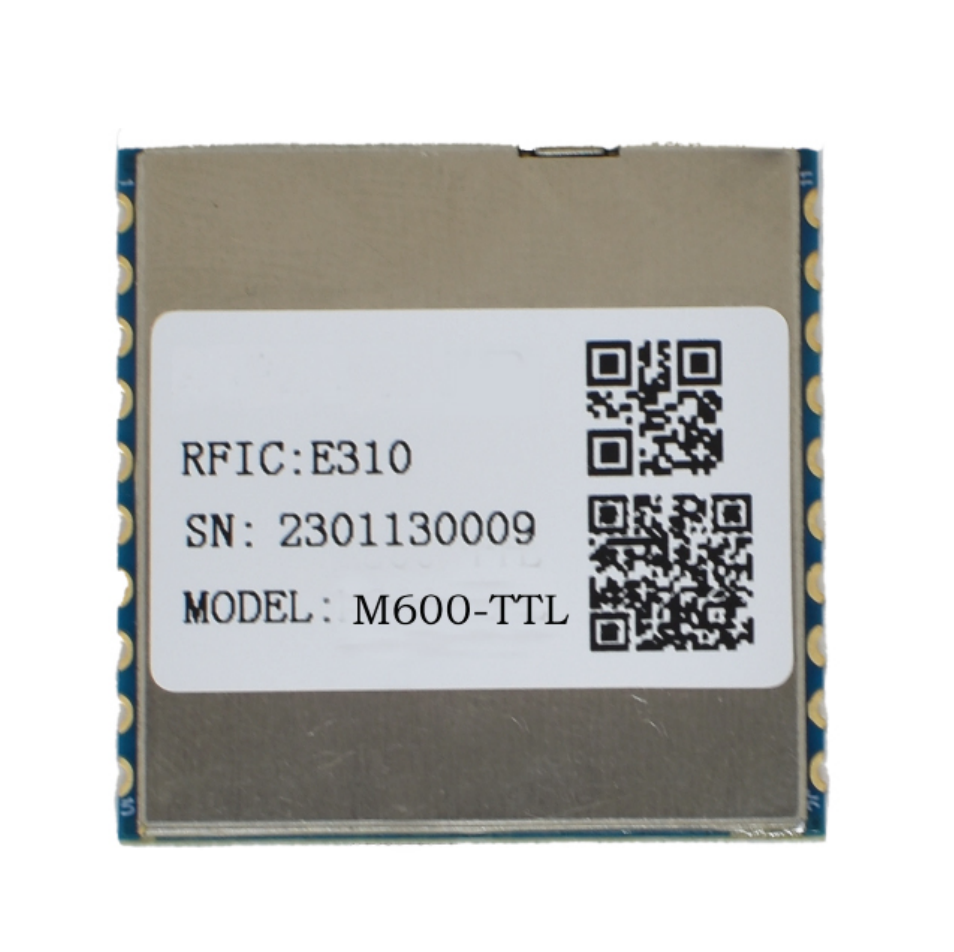

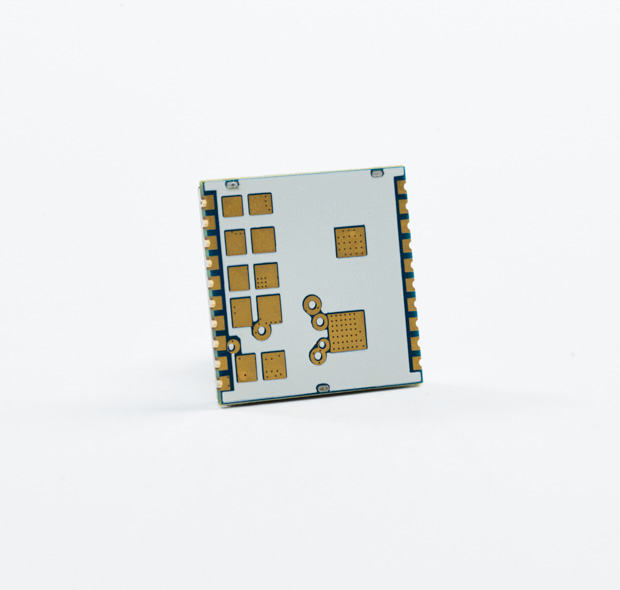

Embedded UHF Module M600
The RFID EMBEDDED UHF SMD Module M600 is a high- performance UHF RFID module based on the IMPINJ E310 New Generation reader chip.
Manufactured as a surface-mounted device (SMD) with a max. RF output power of 30 dBm and supporting real-time onboard temperature monitoring, this module allows for rapid and seamless integration, especially in PDA and desktop RFID devices.
M600 is equipped with UHF Technology EPC Class 1 Gen 2 (ISO 18000- 63) and is globally applicable with a frequency band of 840 – 960 MHz. The M600 UHF SMD module has a MMCX antenna interface that supports a power output of max 30 dBm, which enables it to rapidly read multi-labels at up to 300 tags per second.
The hardware comes with a useful SDK for the development of controller, Linux or Windows based applications. In addition to the documentation, command protocols and source codes, the SDK includes a Windows-based demo application providing full functio- nality over all supported UHF RFID standards.
Key Features
- RFID IC: Impinj E310 / E510 / E710
- Supported Standards: EPC C1 GEN2 (ISO 18000-63)
- High RF Output Power: Up to 30 dBm
- High Reading Rate & Range: 350 – 1000 tags/s, up to 12 meters
- Compact Size: SMD ready form factor
- Interface: UART – TTL
Radio Specifications
- Operating Frequency: 840–960 MHz
Configurations:
USA: 902–928 MHz (FCC)
EU: 865–868 MHz (ETSI) - RFID IC: Impinj E310 / E510 / E710
- RF TX Power: +5 to 30 dBm, adjustable in 1 dB steps
- RF Sensitivity: -73 dBm
- Reading Range: Up to 9 meters*
- RF Impedance: 50 Ω
Electrical Specifications
- Power Supply: 3.6–5 Vdc
- Power Consumption: 850 mA @ +30 dBm TX
50 mA Standby
50 µA Power-Down Mode - Connectors: Solder Joints
- Communication Interface: UART TTL Port
- Baudrate: 9600–921600 bit/s
Factory default: 115200 bit/s - GPIO:
2 TTL Inputs:
– Logic low: < 0.8 V (min 0 V)
– Logic high: > 2 V (max 3.3 V)2 TTL Outputs:
– Logic low: max 0.4 V
– Logic high: min 2.9 V, max 3.3 VMax output current: 5 mA
Mechanical Specifications
- Dimensions: 28 × 28 × 4 mm
- Weight: 10 g
- Material:
– PCB: FR4
– Shielding Frame: Nickel-plated Copper
– Shield Cover: Stainless Steel
Environmental Conditions
- Operating Temperature: -20 °C to +55 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: up to 95%, non-condensing
Supported Standards / Tags
- ISO Standard: ISO 18000-63 (EPC Class 1 Gen 2)
- Read Rate: 350–1000 tags/s
- Tag Cache: ≥ 1000 tags @ 12 Bytes EPC size
SDK Information
- Supported OS: Windows, Linux, Android
- Supported Languages: C, C#/.NET, Java
- Demo Software: Available for Windows
Datasheet M600 UHF Module
