C9 Red Industrial Tablet
Available with RFID UHF, HF (NFC) and LF, Options

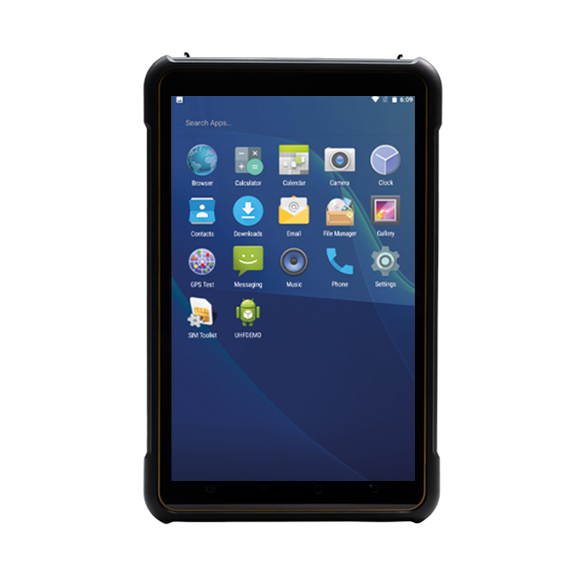

C9 RED Rugged Tablet
The C9 RED tablet is a robust and versatile product. Its 8-inch display is designed to significantly enhance efficiency and productivity. Specifically built for Industry 4.0 and IoT applications, it is ideal for operating in complex and demanding environments.
With an IP67-certified housing and up to 8 hours* of battery life, the C9 RED tablet is perfect for data collection, analysis, and management—even in extreme conditions or remote areas. This handheld computer is perfectly suited for field applications such as aviation, public safety, construction, field sales, and maintenance.
Equipped with Android™ 10, the C9 features a 1.5 GHz octa-core processor (Quad A53), 4 GB of RAM, and 64 GB of internal storage.
With a thickness of just 18 mm and a light weight of 600 grams (including battery), it combines performance and portability.
Multiple configurations are available, customizable with Barcode and RFID modules:
- Integrated UHF Reader (ETSI / FCC)
- HF 13.56 MHz – NFC | LEGIC
- LF 125 kHz
Alternatively, a 2D barcode scanner can be integrated for fast and efficient inventory control.
The 13 MP rear camera with autofocus and LED flash, along with the 5 MP front camera, make it easy to document maintenance operations and capture photographic records on the spot.
The C9 tablet ensures connectivity anywhere with the most advanced communication technologies: Wi-Fi, WCDMA, GSM/GPRS/Edge, Bluetooth, and built-in A-GPS.
A wide range of accessories, technical documentation, and warranty extension options is available to fully support all business needs.
Key Features
- UHF (865.6 – 867.6 and 902 – 928 MHz) | HF – NFC (13.56 MHz) | LEGIC Advant & Prime | LF (125 and 134.2 kHz)
- Large display, lightweight: 8 inches and 600 g
- Android 10: A fast operating system for your application
- Dual technology: RFID and barcode in a single device
Physical characteristics:
- Dimensions 230 × 142 × 18 mm
- Weight 600 g
- Display 8.0 Inch IPS 1.280 × 800 with Backlight
- Battery Rechargeable li-ion Polymer 3.8 V, 8.000 mAh*
- Expansions 4 TP keys, 4 function keys | 2 PSAM, 1 SIM, 1 TF
- Performance characteristics
- CPU Cortex A53 2.0 GHz octa-core
- RAM | ROM 4 GB | 64 GB
- Storage MicroSD (max. 256 GB expansion)
- Programming Environment
- Operating System Android™ 10
- SDK Online available
- Language Javascript
- Environment Android Studio or EclipseUser environment
- Operating Temperature -20 °C to +50 °C
- Storage Temperature -20 °C to +70 °C
- 10 % – 95 % RH (Non-condensing)Protection Class IP67
Drop Specifications 1.2 m drop to concrete across the operating temperature range
Camera
- Megapixel Rear: 13.0 Megapixel | Front: 5.0 Megapixel
- Flash Autofocus with LED FlashCommunication
- WLAN 1500 mAh
- Standby time Dual Wi-Fi 2.4 | 5.0 GHz A/B/G/N
- WWAN
- 3G
- WCDMA B1/2100;B2/1900;B5/850;B8/900;
- CDMA2000/EVDO 3G:TD/SCDMA
- 4G LTE
- FDD-LTE: B1/2100;B3/1800;B7/2600;B20/800;
TDD-LTE: B38/B39/B40/B41 - GSM
- B5/850;B8/900;B3/1800;B2/1900
- WPAN Bluetooth v4.0
- GPS GPS (accuracy up to 5 m)
- 2D Barcode Imager
- 2D CMOS Imager Honeywell N6603/Others
Symbologies PDF417, MicroPDF417, Composite,
RSS, TLC-39, Datamatrix,
QR code, Micro QR code, Aztec,
MaxiCode, Postal Codes, US PostNet,
US Planet, UK Postal, Australian Postal,
Japan Postal, Dutch Postal. etc.Supported Standards | Tags - ISO 18000-6C EPC Class 1 Generation 2
E.g.: Alien Higgs 2/3/4, Impinj Monza, - NXP UCODE, etc.
- ISO 14443 A
and compatible Read/write:
MIFARE® DESFire®EV1 2K/ 4K/ 8K,
MIFARE® Classic Mini / 1K/ 4K,
MIFARE Ultralight®, MIFARE Ultralight® C,
MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only of all other ISO14443A RFID tags - ISO 15693
and compatible EM4135,
EM4043,
EM4x33,
EM4x35,
I-Code SLI / SLIX,
M24LR16/64,
TI Tag-it HF-I,
SRF55Vxx (my-d vicinity)
LEGIC Full read/write operation:
LEGIC Advant; LEGIC Prime
Smart card cards with Card in Card
(CIC) technology Legic Advant type
AFS 4096-JP with loaded Legic
ISO 11784
ISO 11785 Read only: EM4100 and EM4200
Datasheet Industrial TABLET C9
